∗ Capacity:
000♦ Oily water: 5600 m3/day
000♦ Reuse water: 13500 m3/day
000♦ Sanitary: 190 m3/day
∗ Location: Middle East
∗ Key Project Features:
000♦ Engineering Services by MGET Manager
∗ Commencement: 2018
∗ Status: Finished
Project description:
Design of oily wastewater treatment, and sanitary sewage and reuse treatment is done for an Oil Refinery Company. MGET manager is engineering MC in this project.
The aim is to achieve the environmental standard for disposal and to reuse water in the processing plant and principally as a make up for cooling towers or inlet water for demineralizing unit.
Oily waste water flow to oily wastewater treatment unit with oil content of 1000 ppm which is reduced to 10 ppm after treatment.
Also, oily water from boiler & cooling tower blow down and demi package are combined and flow to reuse treatment unit with oil content of 5-10 ppm in Reuse Treatment Plant.
Domestic sanitary of the refinery plant is routed to sanitary package.
In general Plant consists of following main process equipment:
Oily Wastewater Treatment unit:
000♦ API
000♦ Oily Waste DAF

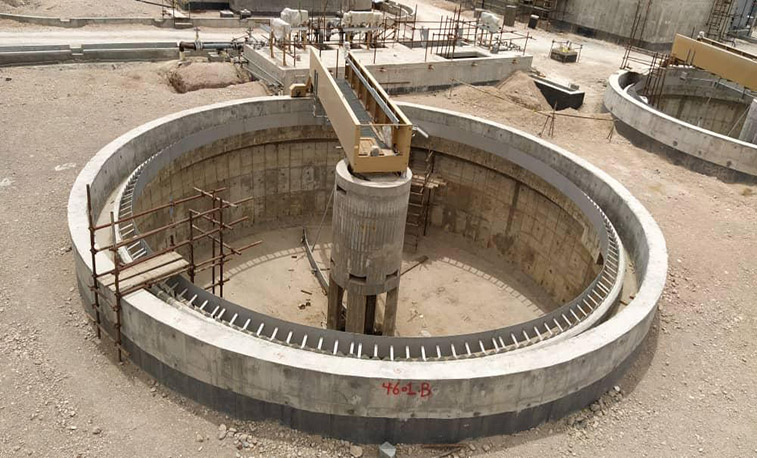

000♦ Activated Sludge Aeration unit and clarification
000♦ Sludge Digestion and Dewatering
000♦ Disinfection unit
000♦ Sand Filtration
Reuse unit:
000♦ Reuse DAF
000♦ Self-cleaning filter
000♦ UF trains
000♦ Reverse Osmosis Package
000♦ Sanitary Package
000♦ Lift Station
000♦ Extended Aeration & Clarification
000♦ Disinfection unit
Highlights:
The most challengeable part of this plant was as following:
000♦ Variations in the reuse influent BOD and COD
000♦ Achieving Maximum Recovery of Reuse unit
